概述   Description

    XSG系列旋轉閃蒸干燥機是我公司在引進吸收國外先進技術的基礎上，自行開發成功的新型干燥設備。該機技術先進，設計合理，結構緊湊，適用范圍廣，生產能力大，產品質量好，效率高，節能，在一個設備內干燥、粉碎、篩分一次完成，消除環境污染，整機性能達到國際先進水平。閃蒸干燥機具有原來的軸承感應冷卻（水冷卻），設計用（油冷卻）油泵聯接送油潤滑、冷卻軸承，密封裝置性能優異，在主軸設計上采用半環式，電機利用調速電機，傳遞平穩、噪聲小，使用壽命是同類產品的10倍。

XSG series roating drier is developed by our company, and its techinology is based on advance techinology adored.The machine is including many superiority, such as reasonable design, compact stuction, widly utilization, grrat productive capacity,good quality, high effect and save energy, Drying, grinding and sieve are completed in one equipment in once time.It eliminate pollution and the techinology is reached international advance level.

-----------------------------------------------------------------------------------------------------------------

原理   Principle

    熱空氣切線進去干燥器底部，在攪拌器帶動下形成強有力的旋轉風場。膏狀物料由螺旋加料器進入干燥器內，在高速旋轉攪拌槳的強烈作用下，物料受撞擊、摩擦及剪切力的作用下得到分散，塊狀物料迅速粉碎，與熱空氣充分接觸、受熱、干燥。脫水后的干物料隨熱氣流上升，分級環將大顆粒截留，小顆粒從環中心排出干燥器外，由旋風分離器和除塵器回收，未干透或大塊物料受離心力作用甩向器壁，重新落到底部被粉碎干燥。

The hot air enters into the bottom of the drier in tangent direction. Under the driving of the stirrer, a powerful rotating wind field is formed.The paste state materials enter into the drier through the screw charger. Under the powerful function of the stirring vanes at high-speed rotation, the materials are distributed under the function of strike, friction and shearing force. The block state mate-rials will  soon be smashed  and contact  the hot air fully and the materials are heated and dried. The dried materials after the dewatering will g o up with the heatair flow. The step rings will stop and keep the big particles. Small particles will be discharged out of the drier from the ring center and will be restored by the whirl separator and dust remover. The not-fully-dried or big piece materials will be sent to the wall of the equipment by centrifugal force function and be smashed again after they fall down to the bottom.

典型用戶：

                 濰坊益康藥用化工廠                     連云港市達歐化工有限公司                      河南寶發醫藥化工有限公司
                 樂斯化學有限公司                         西安惠豐藥業

-----------------------------------------------------------------------------------------------------------------

特點   Featrures

◎ 旋流、流化、噴動及粉碎分級技術的有機結合。

◎ 設備緊湊，體積小，生產效率高，連續生產，實現了“小設備，大生產”。

◎ 干燥強度大，能耗低，熱效率可達70%以上。

◎ 物料停留時間短，成品質量好，可用于熱敏性物料干燥。

◎ 負壓或微負壓操作，密閉性好，效率高，消除環境污染。


◎  The drying capacity for this machine is big but its energy consumption is low. Its heat efficiency can go up to more than 70%.

◎ The equipment is compact and small in size ,  high in production efficiency and continuous in the production. It has realized that "a small equipment can perform the large production".

◎ The material stay time is very short. The quality of the final products is very good. The machine can be used for drying the heat sensitive materials.

◎ For the negative pressure or the micro-negative pressureoperation, the machine is goog for its tightness and high in the efficiency so as to eliminate the environmental pollution.

-----------------------------------------------------------------------------------------------------------------

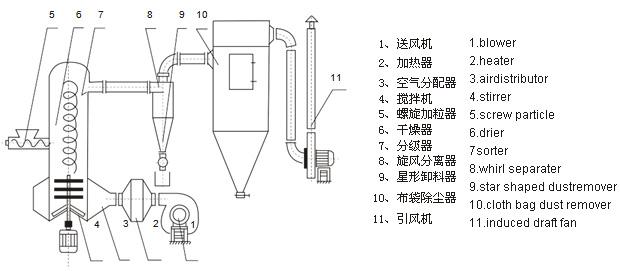

結構示意圖   Schematic of structure

-----------------------------------------------------------------------------------------------------------------

技術參數   Technical parameters
